Concrete Block Cuber Line

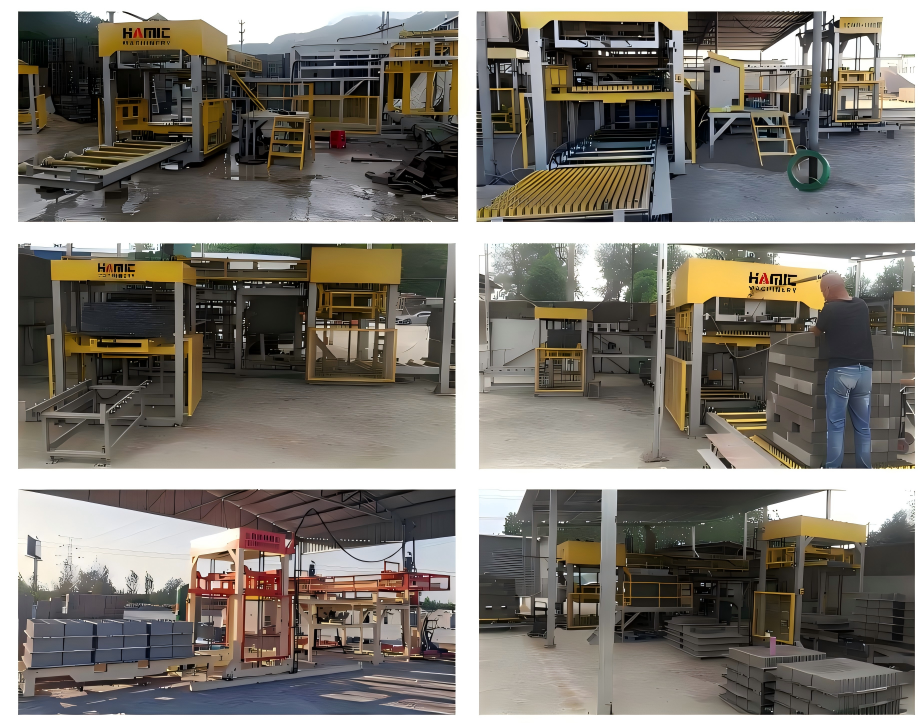

Concrete Block Cuber line , Hollow Block Palletizer, it is a versatile solution suitable for palletizing all types of concrete products, including hollow blocks, paving stones, solid bricks, and curbstones. This machine can function as an independent system or integrate with a concrete block making machine to realize in-line cubing.

The whole system adopts PLC and touch screen control, cooperate with laser induction and intelligent sensor to realize unmanned automatic operation, and automatically stop the alarm and display the fault location when a fault occurs, which can be easily eliminated without professional and technical personnel. Just 2-4 workers can cover the whole brick collection work, save a lot of labor cost. Equipped with remote control systems and cloud data equipment manufacturers can solve all problems in the office all the time.

 Low-Level Automatic Brick Palletzer can separate the bricks of different specifications produced by different types of brick machines, arrange the blocks and finally arrange them into 1200 (mm) square stacks for stacking (standard solid bricks can be stacked up to 12 times at a time) Layer), can choose to wrap around the membrane after passing the brick. With the forklift holding clip, you can directly hold the pallet without the pallet, and the stacking height can be 3 stacks. The whole system adopts PLC + touch screen control, and only one person is required to operate it. The amount of bricks per hour is about 210 layers, which can greatly save labor and labor.

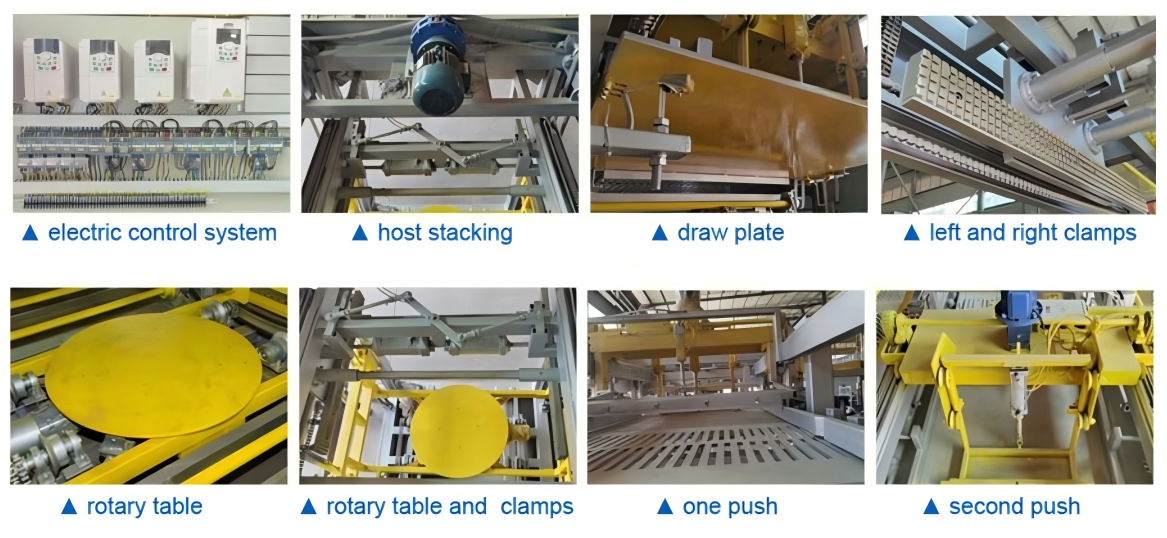

Five technical advantages of TEMA Servo-Controlled Concrete Block Palletizer/Cuber:

1) The complete plant is modular design, very easy for assembly and disassembly.

2) Equipped with 4 sets of servo-controlled motors, 4 sets of frequency inverter-controlled motors, very stable working and high efficiency. Separation of strong & weak current for the electrical control system, help avoid mutual interference. Standard equipped Online troubleshooting through internet to achieve future program update and remote fault diagnosis.

3) Cuber lifting system is equipped with most advanced 11KW reducer (high power with flat brake function), it takes only 5 seconds to change to a new block cube, which is much faster than other manufacturers which average need to take 15 seconds. This special advanced reducer greatly increases the production output.

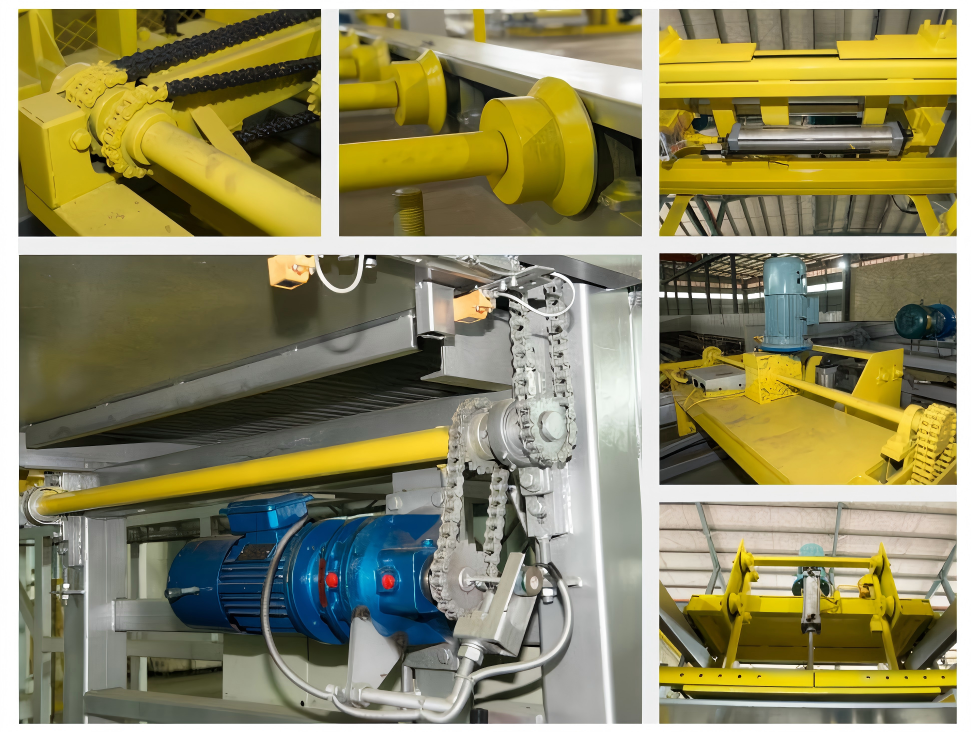

4) Use full set of Servo motors-controlled pushing device working with gear wheel and tooth row design for the block pushing, which is stable, fast and accurate, to avoid the blocks fall off during movements.

5) Elevator clamping jaw has automatic pallets centering function, ensure pallets and blocks are harmoniously and smoothly fitted with offline palletizer which is of high efficiency.
