QT10 European design servo vibration block making machine

The Concrete Block Machine by Fujian Hamic Machinery Co., Ltd. is an innovative solution for producing high-quality concrete blocks efficiently and economically. This machine is designed for versatility, precision, and durability, making it ideal for various construction applications such as residential, commercial, and industrial projects. Its advanced technology ensures exceptional product consistency while minimizing material waste and labor costs.

Specification

Pallet size:1100×950mm

Vibration type:Table Vibration(dynamic and static structure)

Vibration motor: 2×12.8KW(Italy PHASE Servo Vibration Motors)

Power consumption: 60KW

Vibration frequency: 50~60HZ

Cycle time: 13-20s

Product height: 50-500mm

Products strength : 7.5~60 Mpa

Control system: Germany SIEMENS PLC

Hydraulic station: 30KW SIEMENS hydraulic motor, Italian VTOZ valves and American Albert hydraulic pump

Gross weight:15T

Vibration force: 100~120KN

Place of origin: CHINA

Trading method: FOB/CIF/EXW Xiamen Port

Delivery time:20-30days

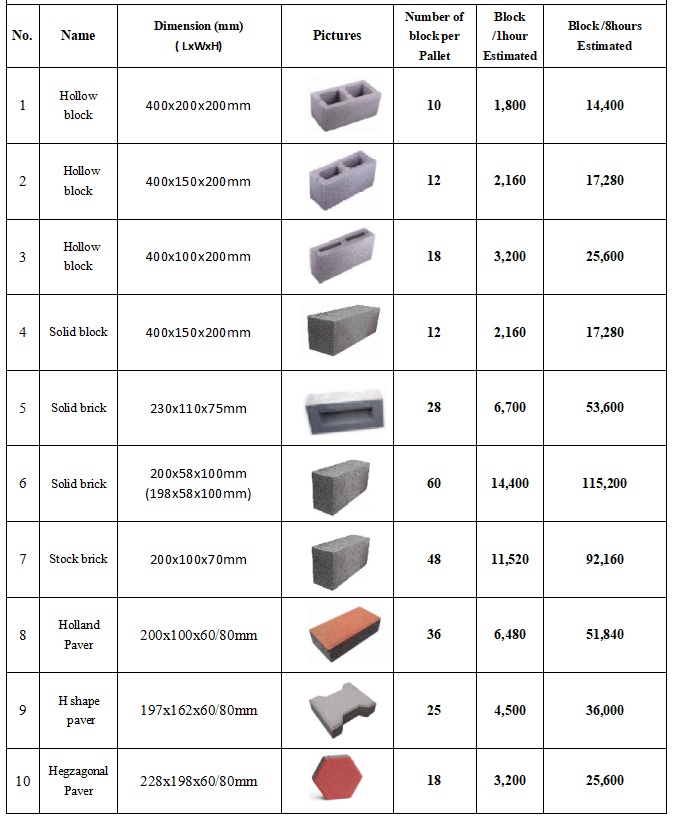

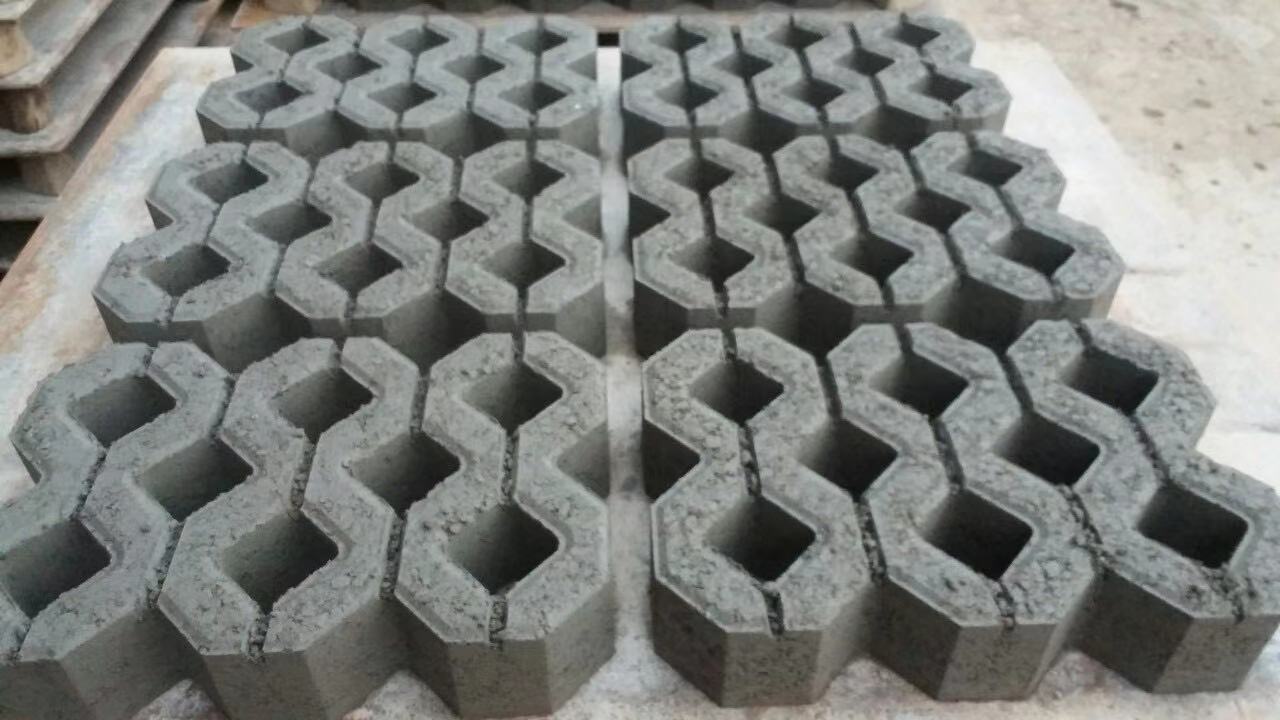

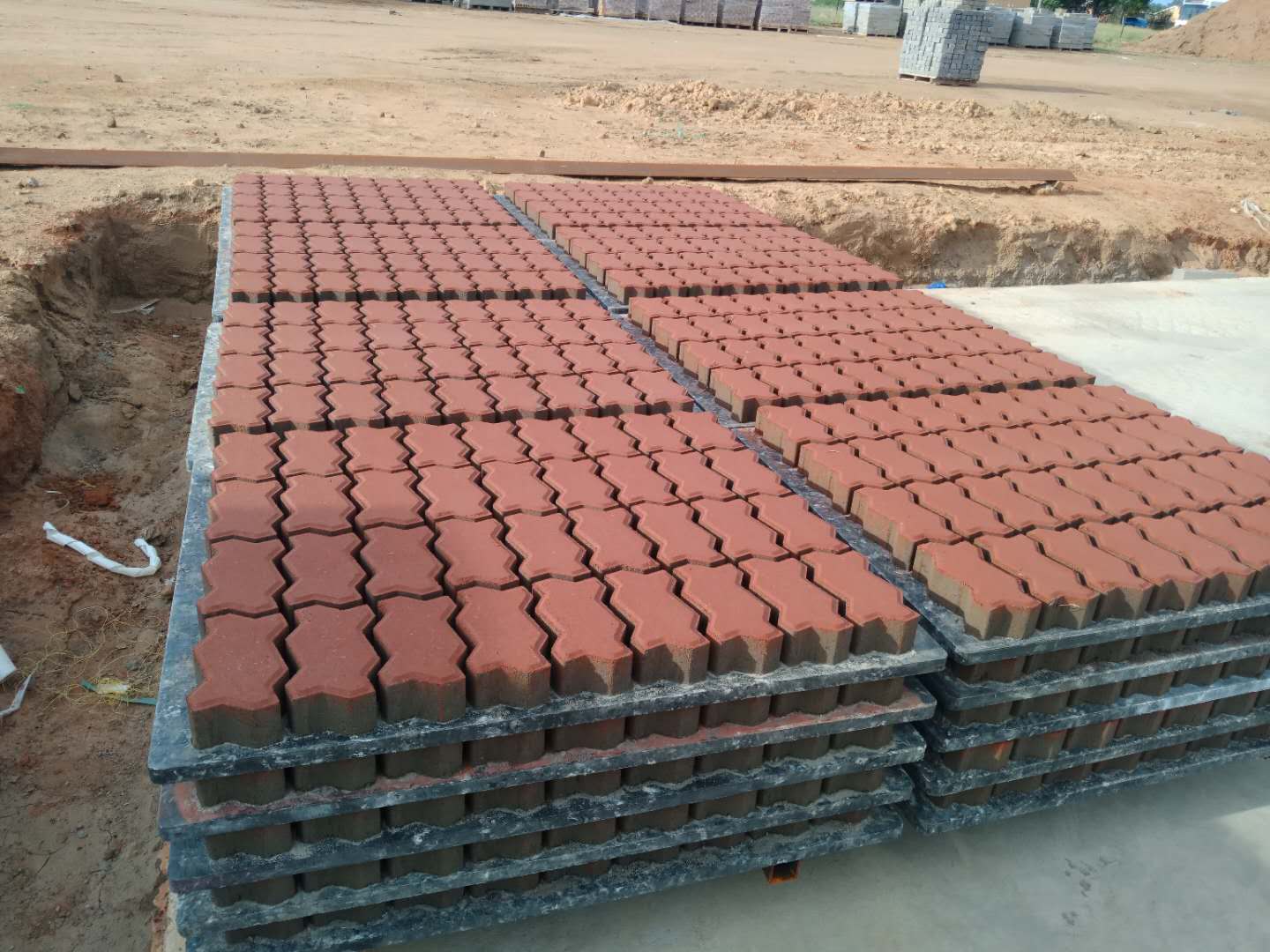

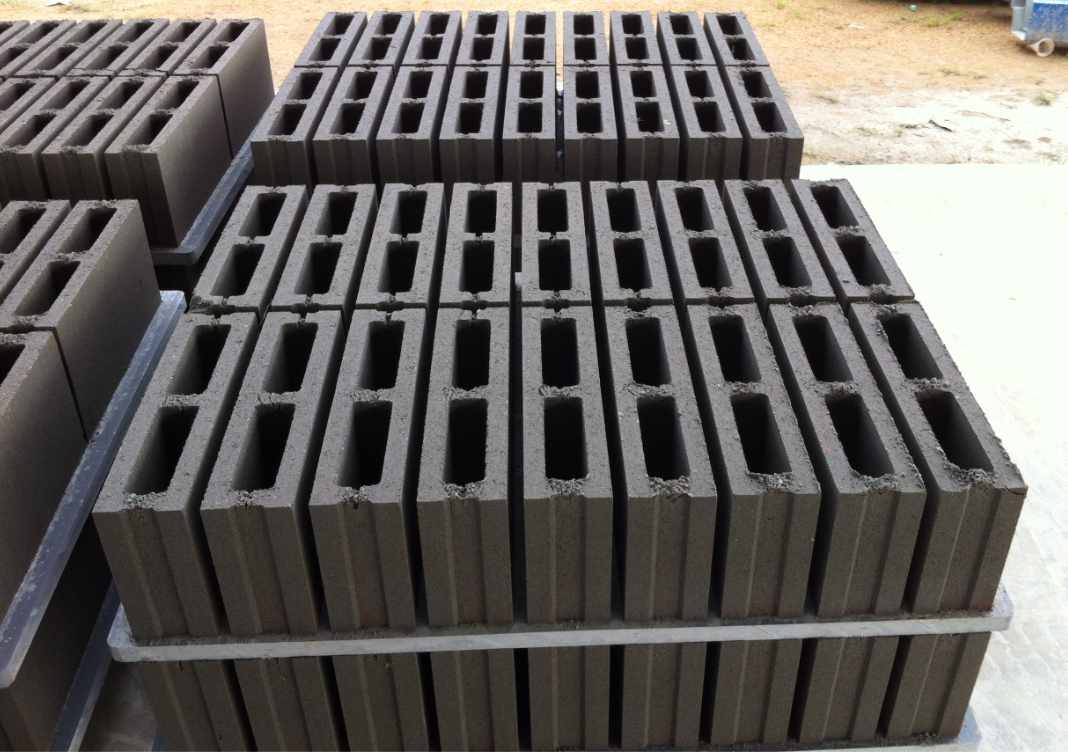

Applied products: concrete blocks,solid/hollow/paving stones with or without facemix, slabs, edgers, kerb stones,grass blocks, slope blocks, interlocking blocks,etc.

Shock-absorbing airbag: this unit greatly reduce vibration transfer to the ground and building frameworks, alongside lowering noise emissions. Its airbag mold locking system supports fast mold replacement, molds can be exchanged fast within 20 minutes, eliminating screw fixing entirely.

Servo vibration motor: Italian Physis servo motor,less noise and high vibration, synchronize working to improve density and strength of block.

Double swing arm feeding car: fast and evenly mold filling, feeding speed is precisely adjusted via inverter.

Static and dynamic vibration table: control vibration amplitude, ensure higher energy transfer efficiency, guarantee the produced bricks are high-quality, consistent, and perfectly flat.

Synchronization de-moulding system: Advanced synchronization brings precise & smooth mechanic movement

Features and Benefits:

1. High Efficiency:
   Capable of producing a large volume of concrete blocks with consistent quality, significantly reducing production time.

2. Advanced Automation:
   Integrated intelligent control systems enable seamless operation with minimal manual intervention, enhancing productivity.

3. Customizable Molds:
   Supports a variety of mold designs to produce blocks of different shapes and sizes, catering to diverse construction needs.

4. Eco-Friendly Operation:
   Optimized for sustainable production with minimal material waste and energy-efficient components.

5. Robust Construction:
   Built with high-quality materials for long-lasting performance and reliability, even in demanding industrial environments.

6. Precision Engineering:
   Ensures accurate dimensions and smooth surfaces of the blocks for easy installation and excellent structural integrity.

7. Versatile Applications:
   Ideal for producing blocks used in load-bearing and non-load-bearing walls, paving, and landscaping.

8. Easy Maintenance:
   Designed for simple maintenance to minimize downtime and reduce operational costs.

Applications:

• Residential and commercial construction
• Industrial buildings
• Landscaping and paving projects
• Modular and prefabricated housing
• Infrastructure development
