QT18 European design block making machine
European-style servo-driven concrete brick making refers to a highly automated approach to producing concrete blocks, pavers, and bricks using precision servo-controlled machinery rather than purely mechanical or hydraulic systems. It is especially associated with European manufacturers that prioritize energy efficiency, tight dimensional tolerances, and advanced automation.
At the core of this system is a servo-driven block machine, where key motions—such as mold filling, compaction, vibration, and demolding—are controlled by servo motors. Unlike traditional hydraulic setups, servo systems allow real-time adjustment of force, frequency, and displacement with high precision. This leads to more consistent product density, sharper edges, and reduced cement waste.
servo-driven lines emphasize:

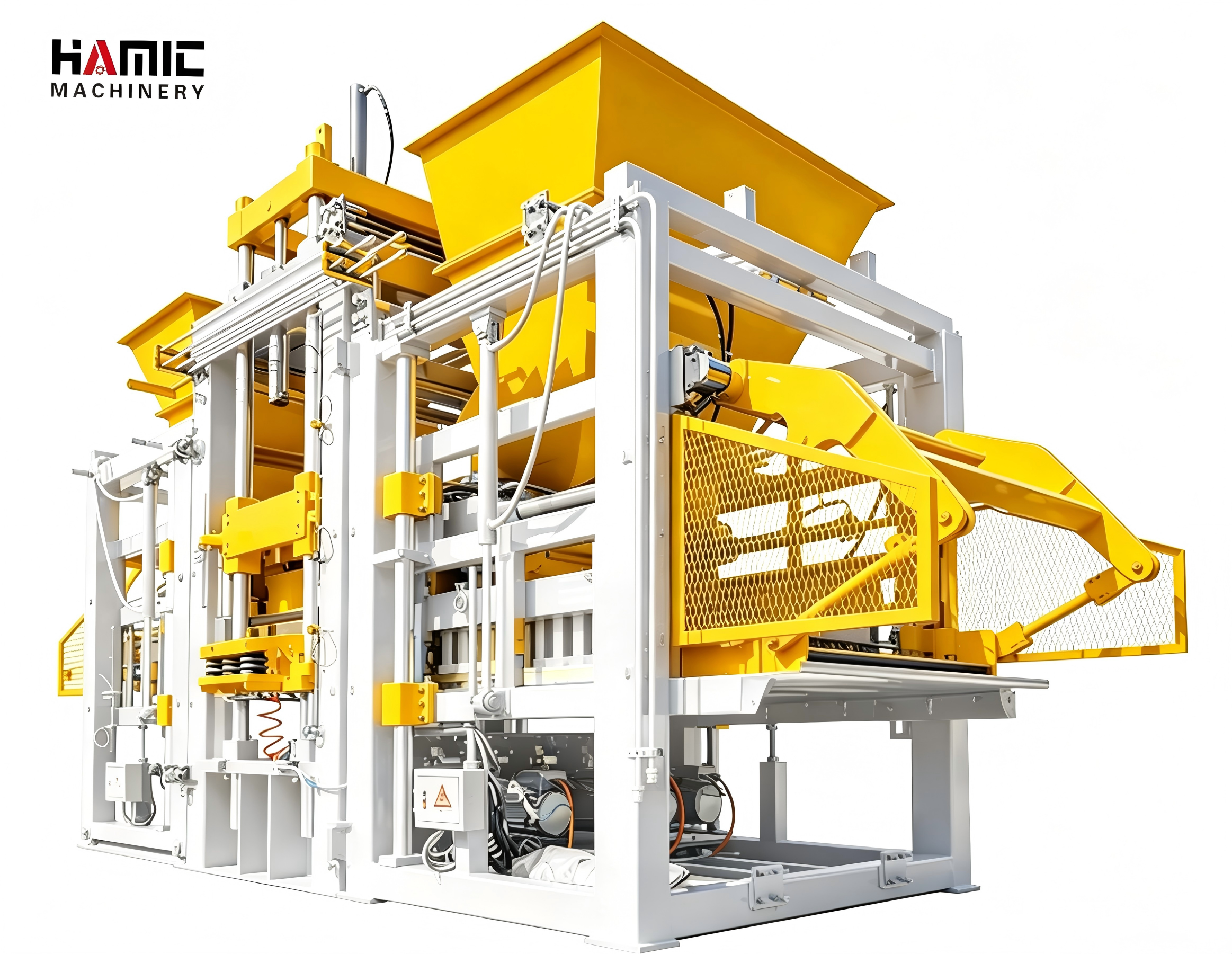

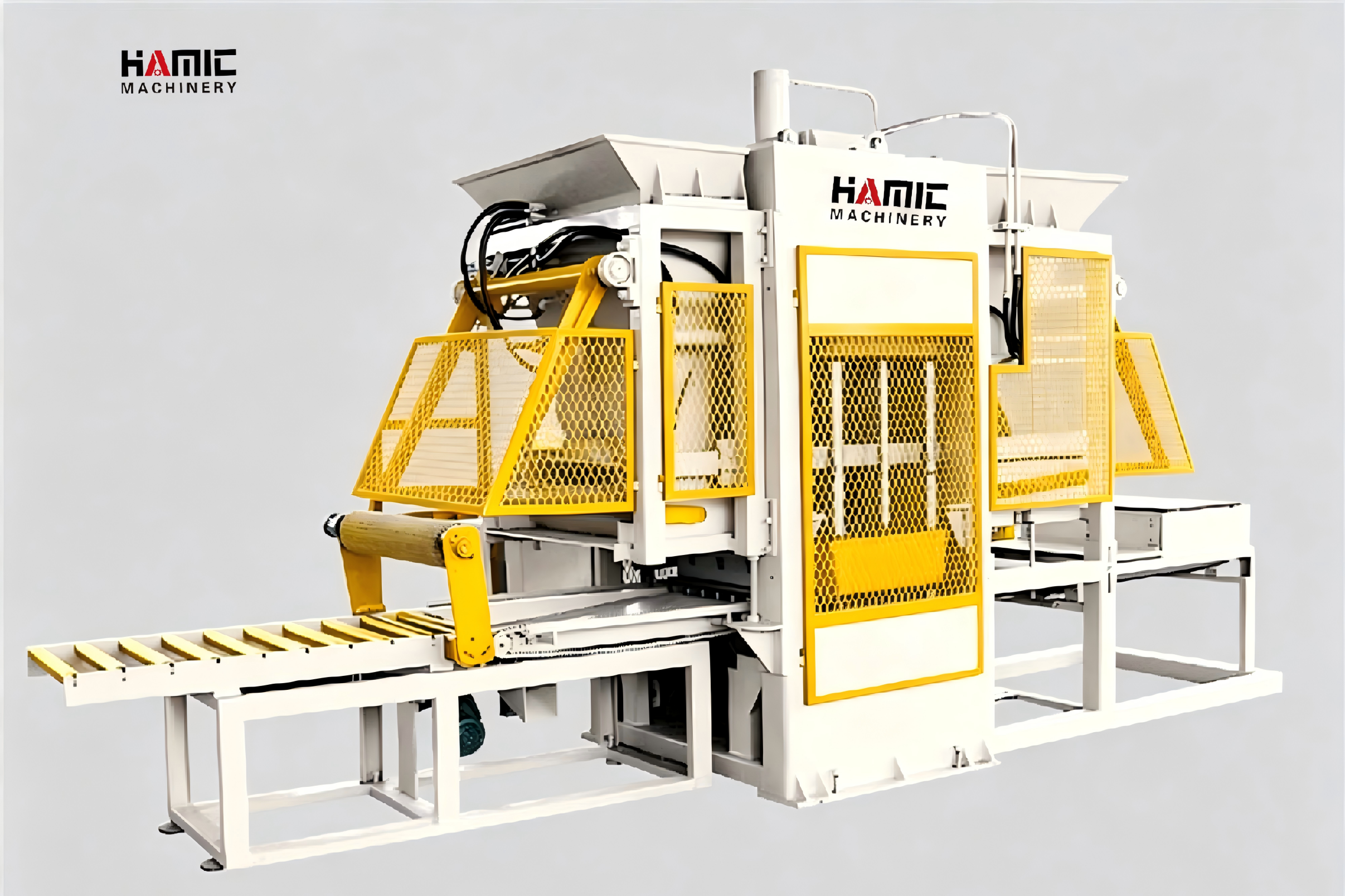

QT18-15 Automatic block machine specification
Pallet size: 1400x1300mm
Vibration type: Table Vibration(dynamic and static structure)
Vibration servo motor: 4x16.5KW
Power consumption:130KW
Vibration frequency: 3800-4500
Cycle time: 12-19s
Product height: 40-500mm
Rating pressure: 21Mpa
Main Machine dimension: 9600×3300×2700mm
Control system: Germany SIEMENS PLC
Hydraulic station: Italian VTOZ or Japanese Yuken valves and American Albert hydraulic pump
Gross weight:20T
Vibration force: 68KN
Damping System: Michelin Rubber Pads
Place of origi : CHINA
Trading method: FOB/CIF/EXW Xiamen Port
Delivery time: 20-30days

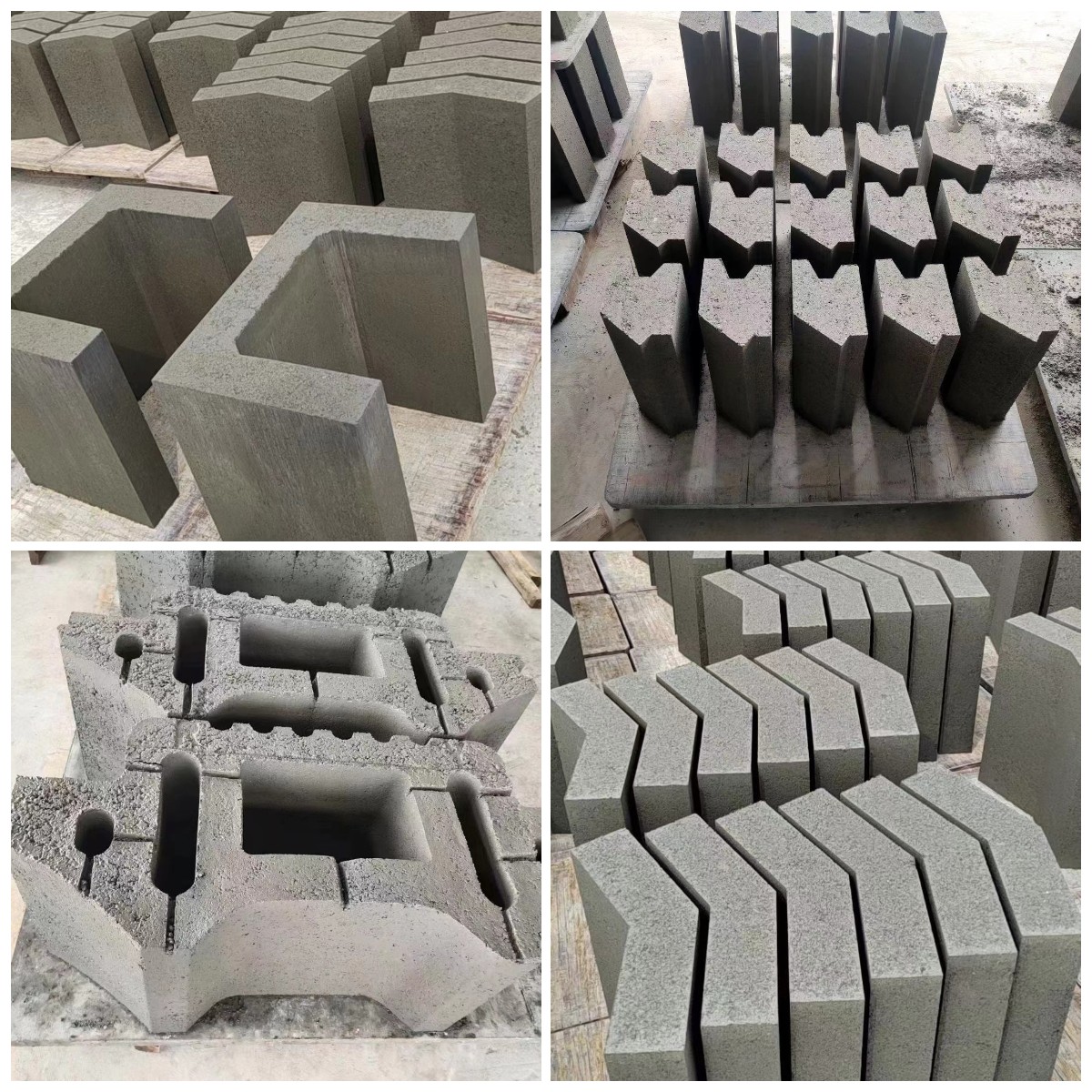

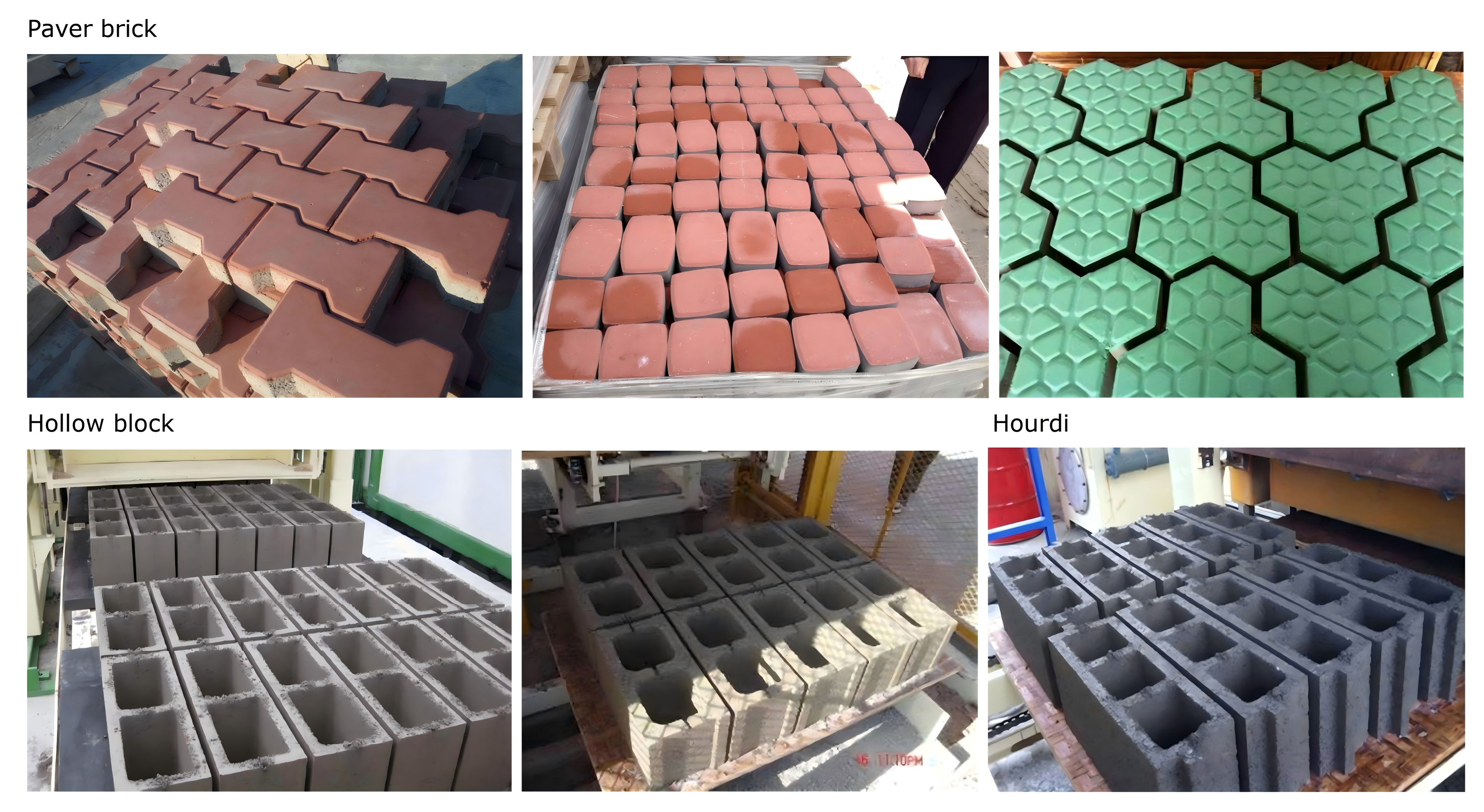

Applied products: concrete blocks, solid/hollow/paving stones with or without facemix, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
HAMIC tightly controlled servo mechanics, data-driven consistency, and fully integrated plant automation aimed at high-quality architectural concrete products at industrial scale.
