Details

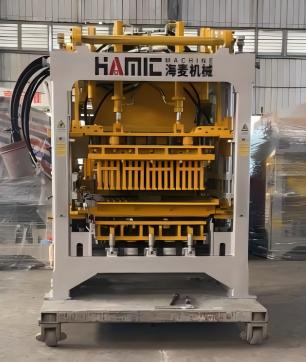

QT6 is a fully automatic concrete block production line, specially designed for producing
high-quality concrete bricks, hollow blocks, interlocking pavers and other construction materials.
It is a medium-capacity model with a pallet size of 980×680mm, suitable for both small and medium-scale production needs.
QT6-15 Automatic block machine specification
Pallet size: 980×680mm
Vibration type: Table Vibration(dynamic and static structure)
Vibration motor: 2x11KW
Power consumption: 37KW
Vibration frequency: 3800-4500
Cycle time: 12-19s
Product height: 40-200mm
Rating pressure: 21Mpa
Main Machine dimension: 9450×3300×2700mm
Control system: Germany SIEMENS PLC
Hydraulic station: Italian VTOZ or Japanese Yuken valves and American Albert hydraulic pump
Gross weight:8.5T
Vibration force: 68KN
Place of origin : CHINA
Trading method: FOB/CIF/EXW Xiamen Port
Delivery time: 20-30days
Applied products: concrete blocks, solid/hollow/paving stones with or without facemix, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
material factories. It can produce different sizes of hollow blocks, solid bricks, paver blocks and
curb stones by changing molds.
Advantages: - Easy operation with PLC control panel - Low maintenance cost and long service life - Strong structure, stable performance and reliable quality - Available with complete production line solutions including mixer, conveyor and curing rackQT6-15 automatic block machine daily capacity
