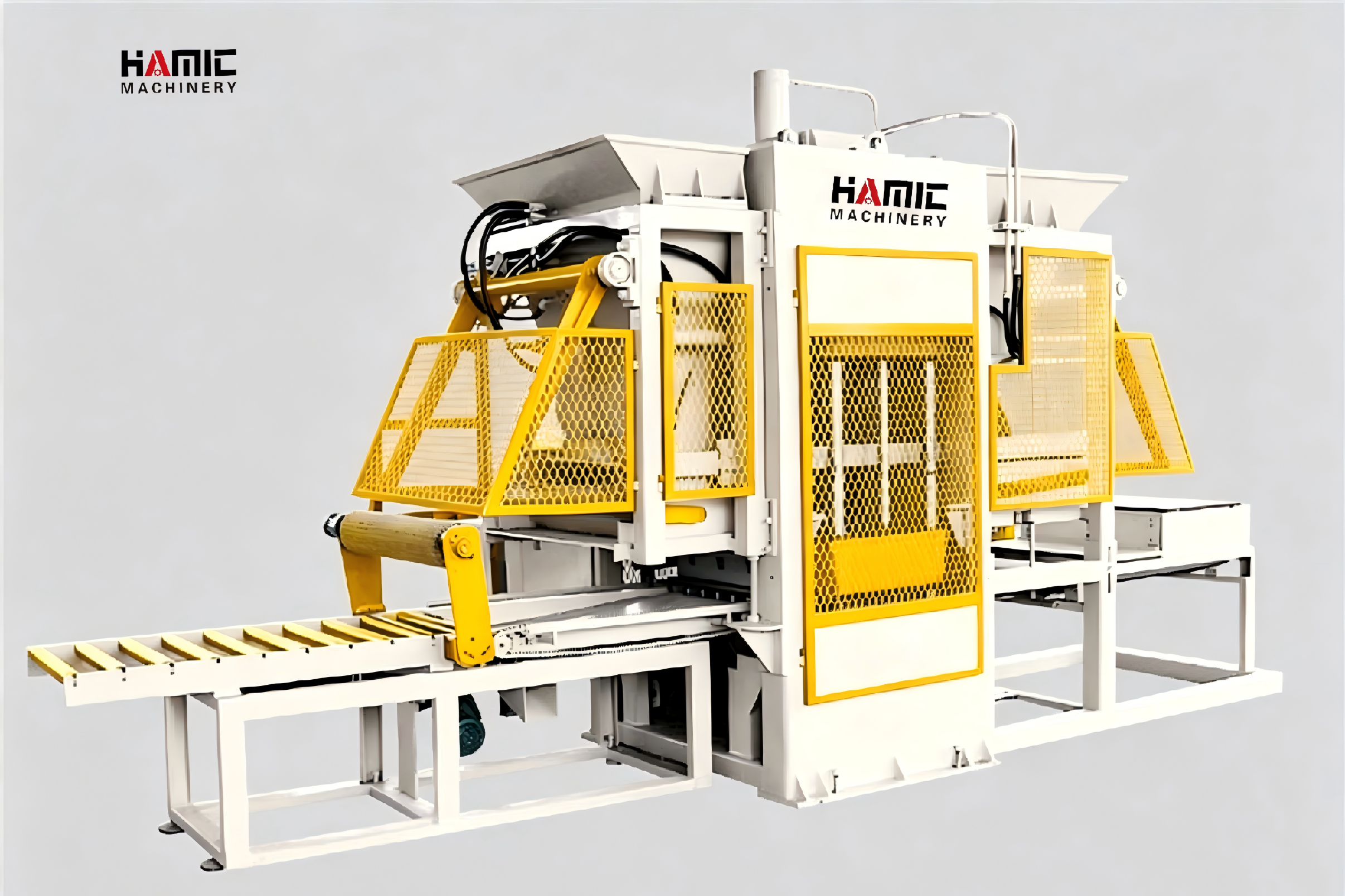

QT8 Fully Automatic Concrete Block Making Machine

The QT8-15 Fully Automatic Concrete Block Making Machine is designed for the production of hollow blocks, solid blocks, and paving blocks using interchangeable molds. It combines hydraulic pressure with vibration compaction to shape and compact the concrete mix. Automated material feeding and molding help reduce manual intervention and support consistent production. With suitable molds, the machine can produce blocks in different shapes and sizes for a range of construction and paving applications.

Specification:

Pallet size: 980×880mm

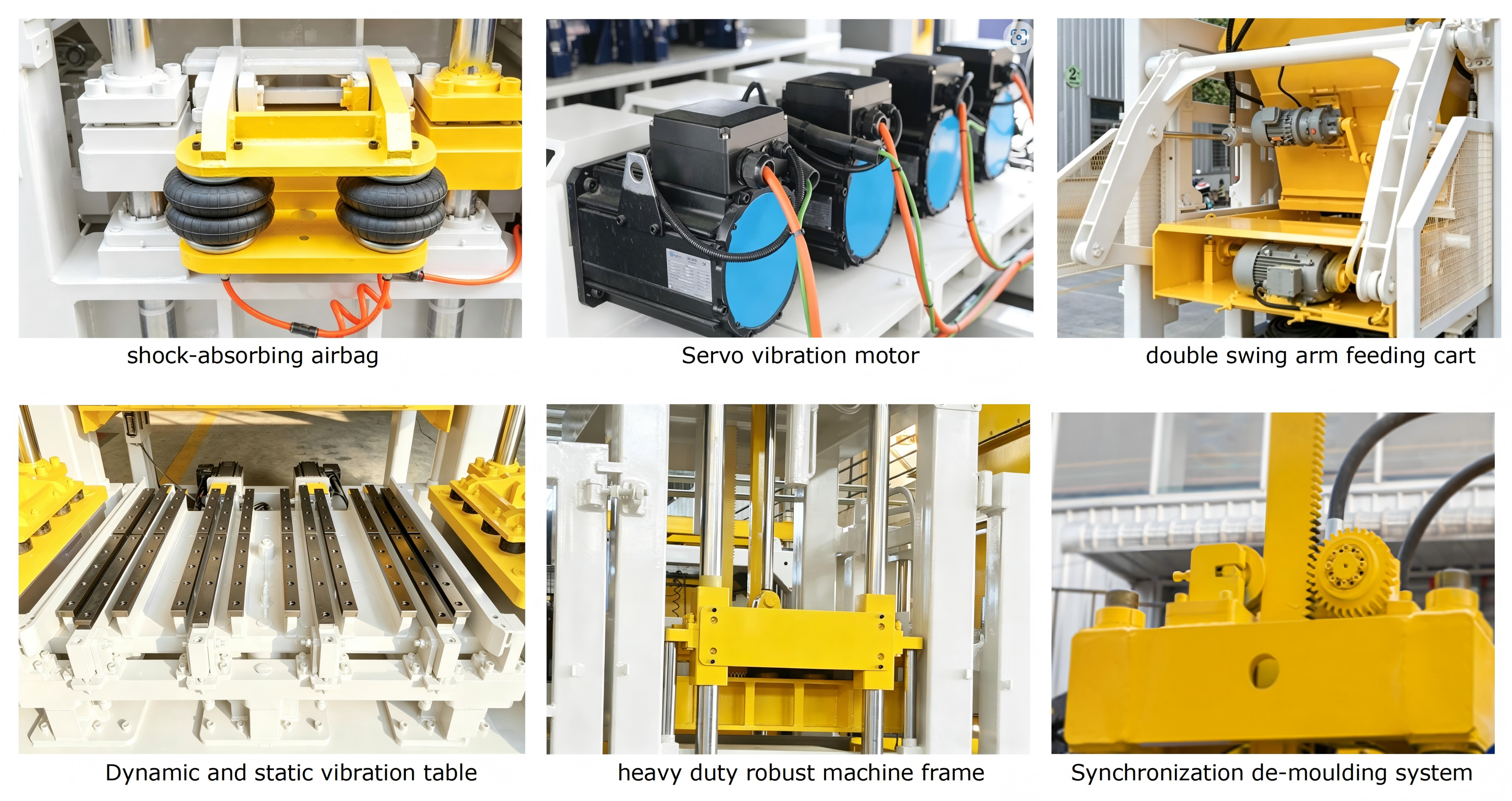

Vibration type: Table Vibration(dynamic and static structure)

Vibration motor: 2x11KW

Power consumption:51KW

Vibration frequency: 3800-4500

Cycle time: 12-19s

Product height: 40-200mm

Rating pressure: 21Mpa

Main Machine dimension: 9600×3300×2700mm

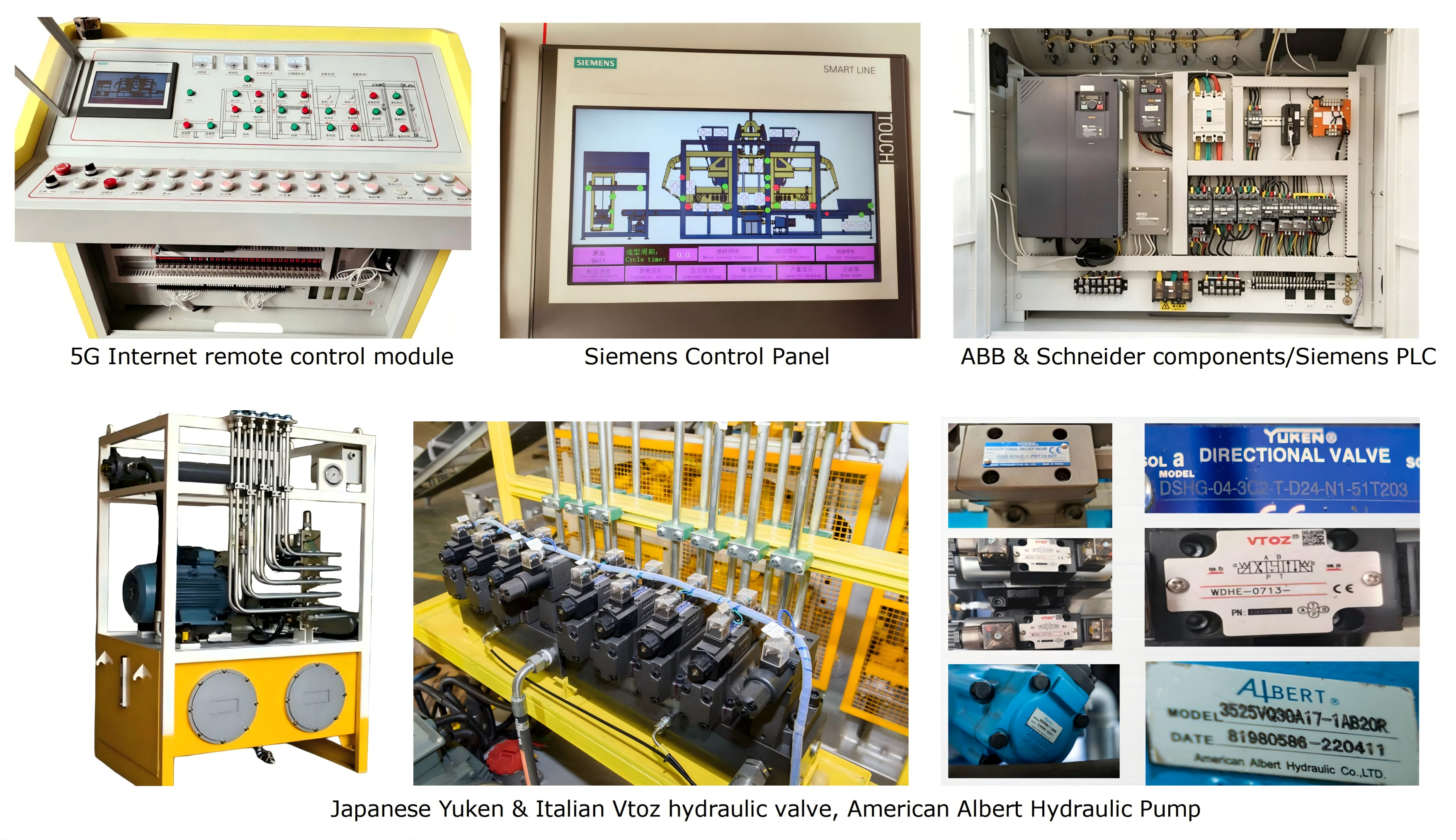

Control system: Germany SIEMENS PLC

Hydraulic station: Italian VTOZ or Japanese Yuken valves and American Albert hydraulic pump

Gross weight:10T

Vibration force: 68KN

Place of origin : CHINA

Trading method: FOB/CIF/EXW Xiamen Port

Delivery time: 20-30days

Applied products: concrete blocks, solid/hollow/paving stones with or without facemix, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

Features and Benefits:

1. Automatic Production:
   Designed with an automatic production system for efficient and streamlined manufacturing of concrete blocks and paving products.
2. High Production Capacity:

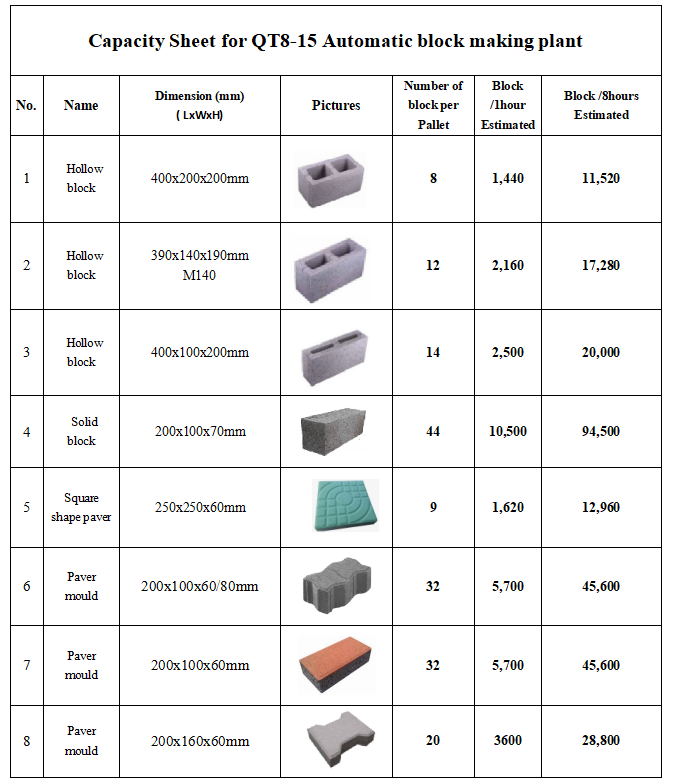

   Capable of high-volume production, with estimated output varying according to product size and type. Selected block specifications can reach up to 10,500 blocks per hour.
3. Versatile Product Production:
   Supports the production of hollow blocks, solid blocks, square-shaped pavers, and interlocking paving blocks in various sizes and configurations.
4. Flexible Mold Compatibility:
   Supports different mold configurations, allowing manufacturers to produce concrete products in different shapes, dimensions, and thicknesses for diverse construction requirements.
5. Efficient Pallet Utilization:
   Accommodates multiple blocks or paving products per pallet depending on the product specification, supporting efficient and high-volume production.
6. Commercial Production Capability:
   Suitable for commercial block manufacturing plants requiring consistent production of concrete blocks and paving products for construction and infrastructure projects.

Applications:

1. Construction Industry:
   • Production of hollow blocks and solid blocks for residential, commercial, and general construction projects.
   • Suitable for wall construction, partition walls, boundary structures, and other building applications.
2. Road and Pavement Projects:
   • Manufacturing of square-shaped pavers and interlocking paving blocks for sidewalks, pedestrian areas, plazas, courtyards, and other paved surfaces.
   • Suitable for residential, commercial, landscaping, and public-space paving projects.
3. Infrastructure Development:
   • Provides concrete block and paving products for a range of construction and infrastructure applications.
   • Multiple product configurations allow manufacturers to meet different project requirements.
4. Commercial Block Manufacturing Plants:
   • Designed for high-volume production of standardized concrete blocks and paving products.
   • Suitable for block manufacturers, construction material suppliers, contractors, and large-scale construction projects.
5. Multiple Product Configurations:
   • Supports various block and paver specifications, including hollow blocks, solid blocks, and paving products.
   • Enables manufacturers to adjust production according to market demand and project requirements.
