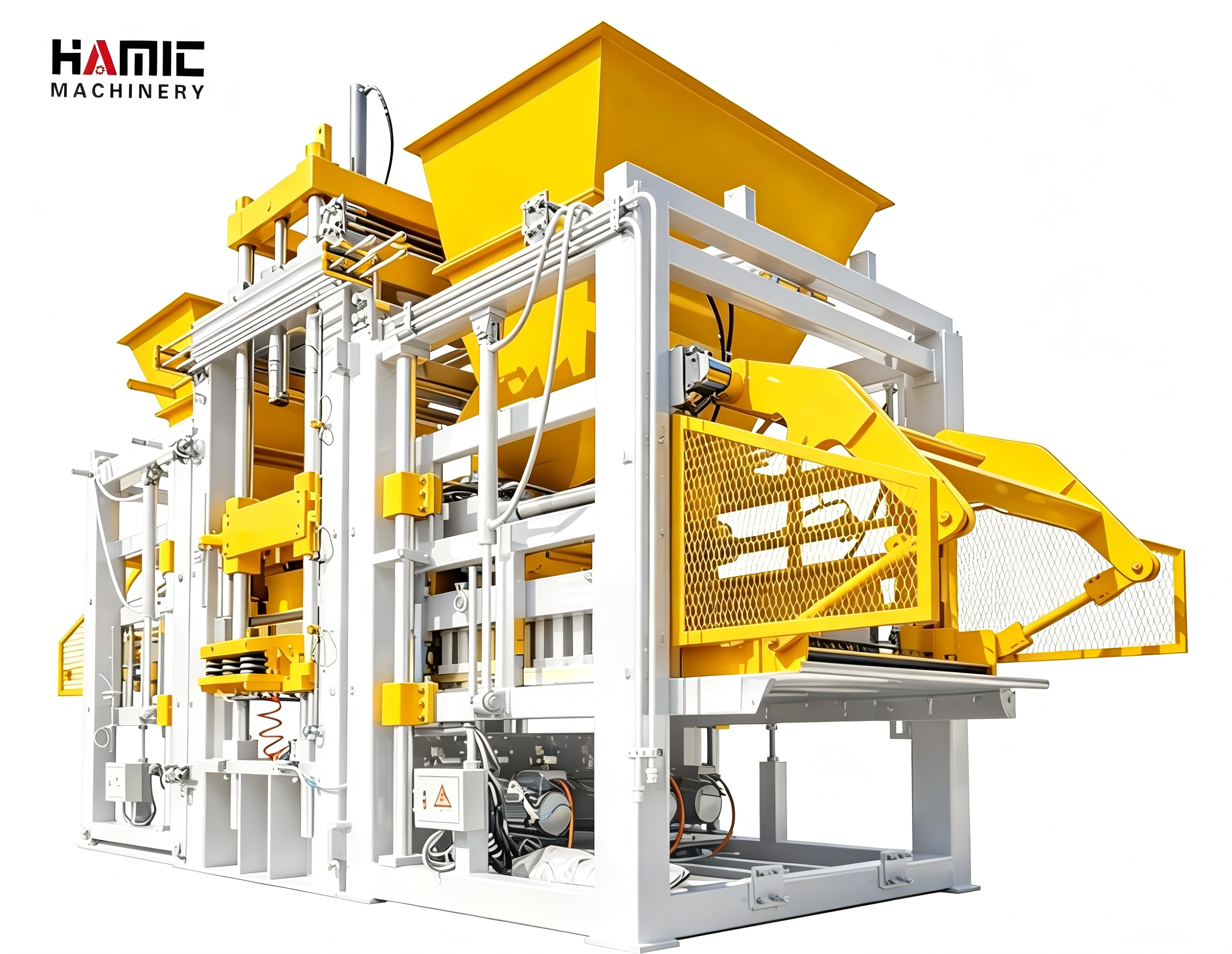

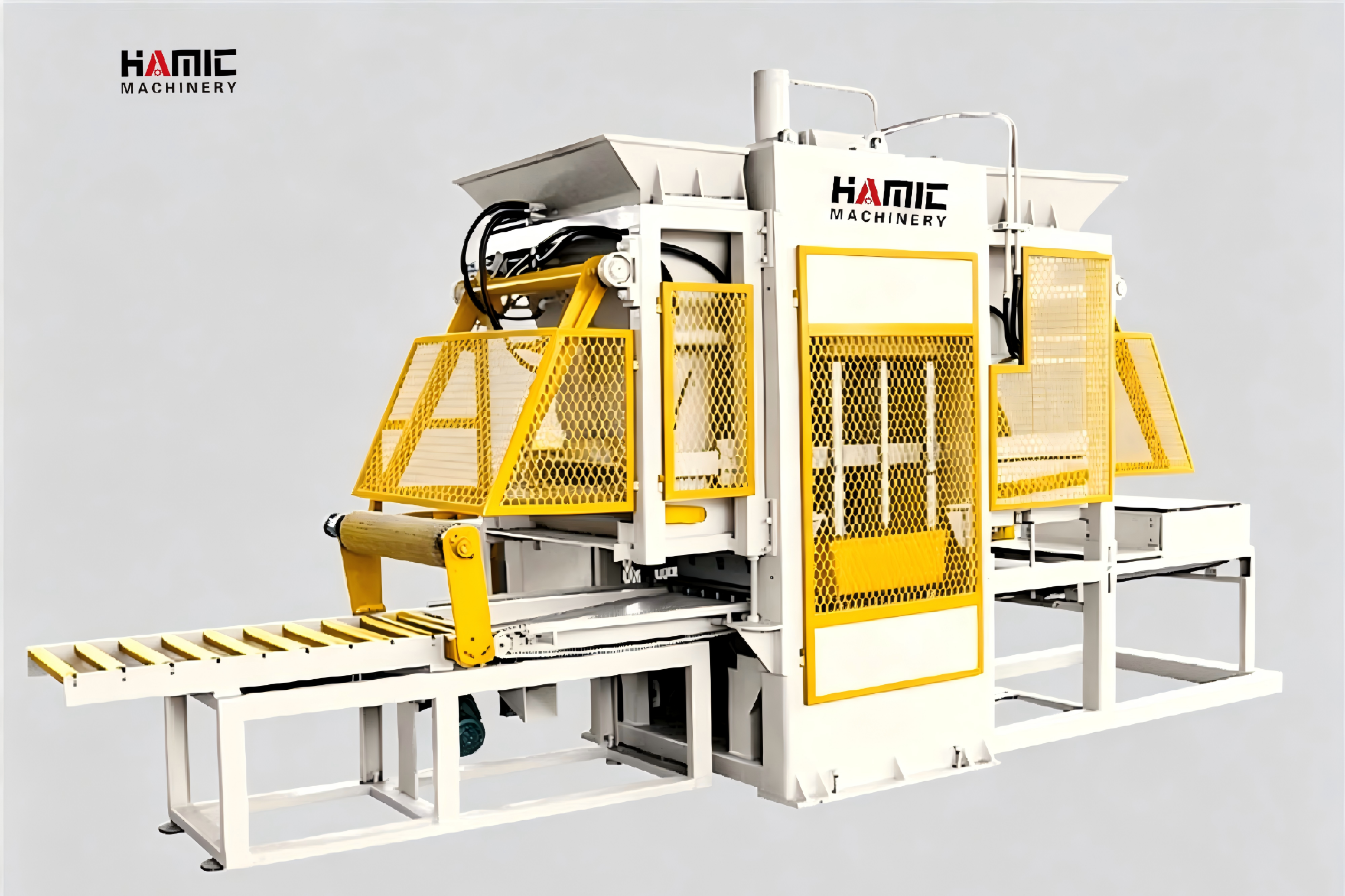

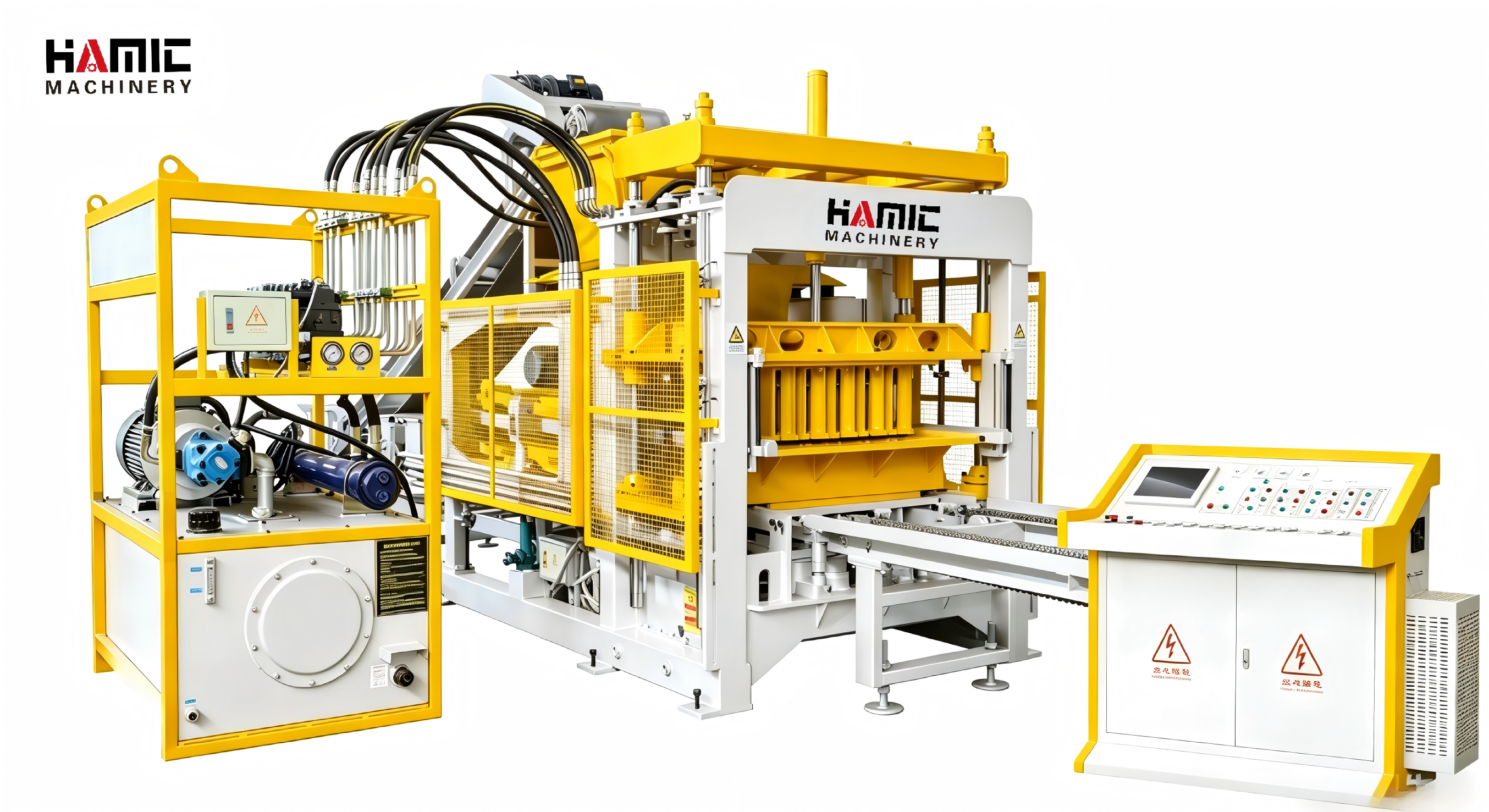

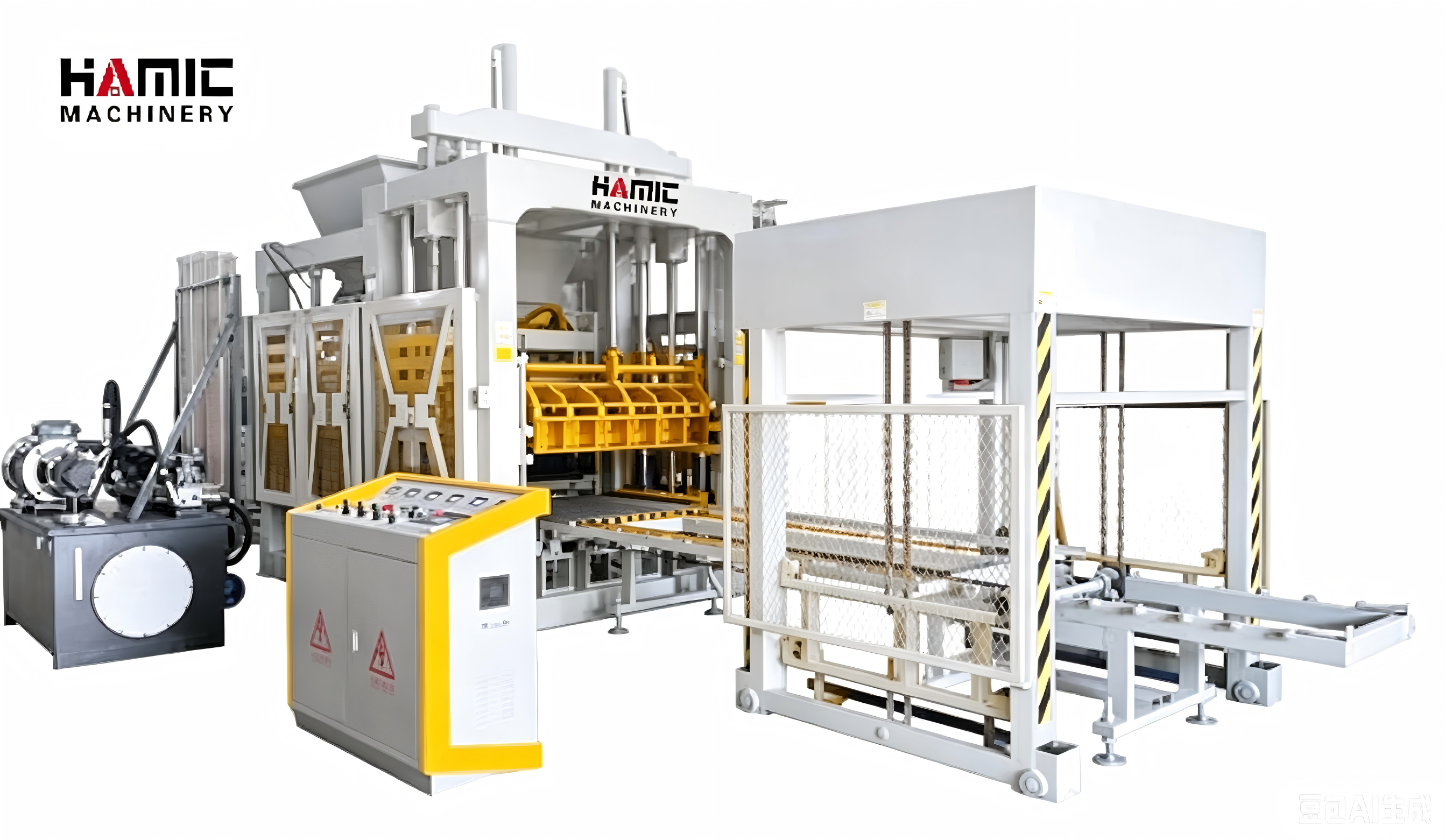

QT8-15 Hydraulic Block Making Machine
QT8-15 fully automatic concrete block machine serves as a complete high-efficiency manufacturing solution for the construction materials industry. Equipped with PLC intelligent control and hydraulic vibration molding technology, the machine completes feeding, distributing, pressing and demolding fully automatically without heavy manual labor.
With a molding cycle of only 15 seconds, it can produce 8 standard hollow blocks per mold, supporting mass daily production. By simply replacing molds, this single machine can manufacture hollow blocks, solid standard bricks, interlocking pavers, curb stones, grass planting bricks and other construction products. It makes full use of waste raw materials including fly ash, construction waste, slag and sand, which greatly cuts production costs and meets environmental protection requirements.
QT8-15 Automatic block machine specification
Pallet size: 980×880mm
Vibration type: Table Vibration(dynamic and static structure)
Vibration motor: 2x11KW
Power consumption:51KW
Vibration frequency: 3800-4500
Cycle time: 12-19s
Product height: 40-200mm
Rating pressure: 21Mpa
Main Machine dimension: 9600×3300×2700mm
Control system: Germany SIEMENS PLC
Hydraulic station: Italian VTOZ or Japanese Yuken valves and American Albert hydraulic pump
Gross weight:10T
Vibration force: 68KN
Place of origin : CHINA
Trading method: FOB/CIF/EXW Xiamen Port
Delivery time: 20-30days
Applied products: concrete blocks, solid/hollow/paving stones with or without facemix, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

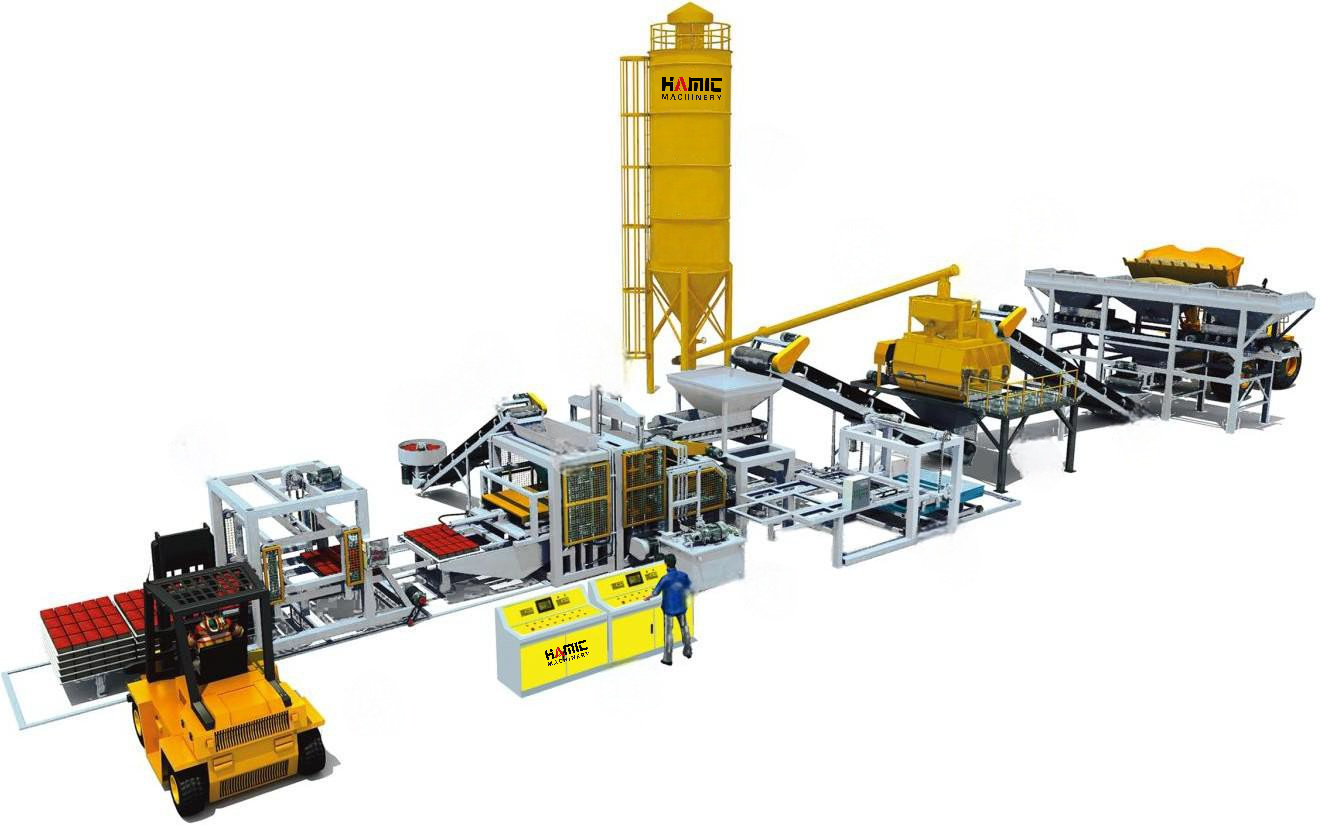

Matched with batching machine, mixer, conveyor stacker and pallet delivery system, the QT8-15 unit forms an unattended full production line. Featuring thickened steel frame, precision guide columns and stable hydraulic circuit, the machine boasts long service life and consistent finished block quality. It is the most cost-effective high-efficiency manufacturing solution for medium-scale brick plants both at home and overseas.

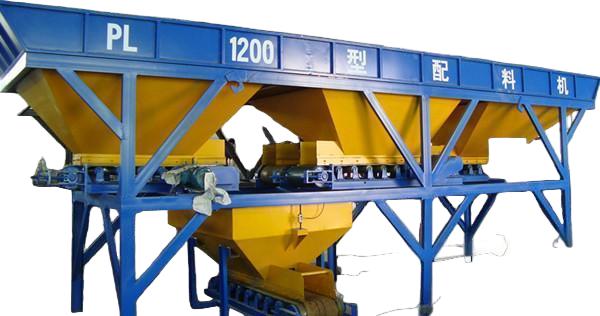

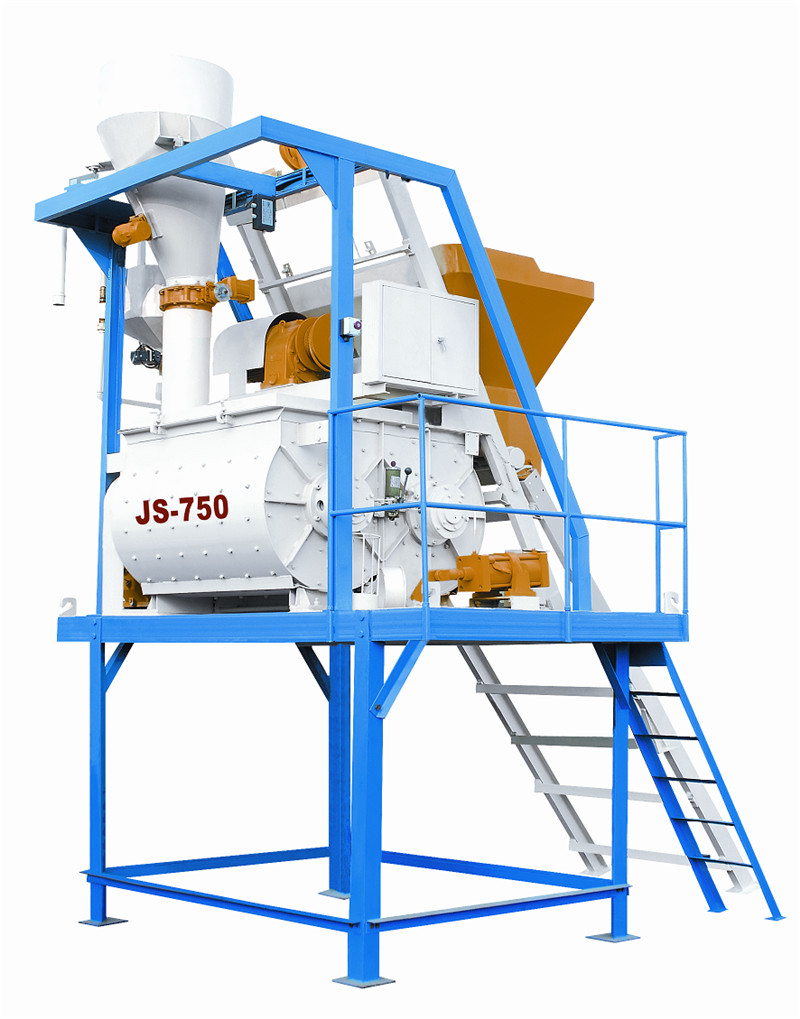

Automatic Batching machine Horizontal mixer
